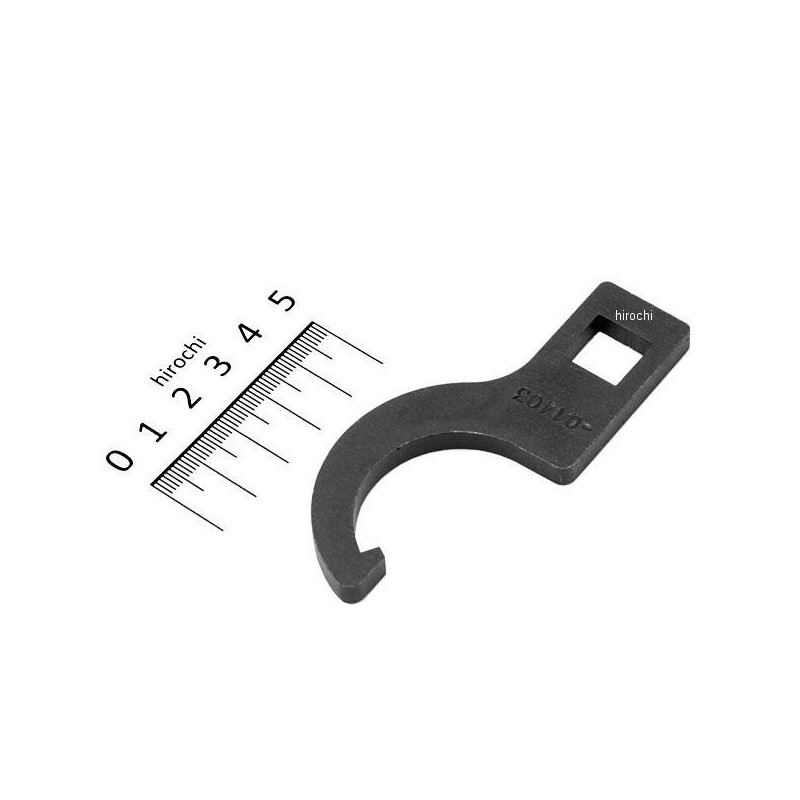

90890-01403 Steering tool

1. Remove:
Lean angle sensor, near battery

2. Check:
Lean angle sensor output voltage. Out of specification → Replace.
Lean angle sensor output voltage:

    Less than 45°: 0.4-1.4 V
    More than 45°: 3.7-4.4 V

a. Connect the test harness-lean angle sensor (6P) "1" to the lean angle sensor and wire harness as shown.
   Positive tester probe: Yellow/Green (wire harness color).
   Negative tester probe: Black/Blue (wire harness color).

b. Connect the pocket tester (DC 20 V) to the test harness-lean angle sensor (6P).

c. turn on bike


Test harness-lean angle sensor (6P) 90890-03209 YU-03209.
